25' Deckover Equipment Trailer 25k GVWR

Cold form continuous tongue (no notching or heating), heavier main frame I-beams and side rails with 16″ cross member spacing allow a higher GVWR rating, premium radial tires, toolbox with lockable lid, LED rubber mounted sealed beam lighting  in enclosed boxes with sealed modular wiring harness.

Specs:

• GVWR - 25,000 lb.
• Capacity - 20,000 lb. with 5,000 lb. Hitichload

Features:

• Treated wood deck
• 96″ wood deck 101.5″ to outside of rubrails
• 10000 lb. oil bath axles with all wheel brakes
• Slipper spring suspension
• 235/80 R16 load range E 10 ply rating West Lake Radial tires
• 12” I-beam frame (W12x16)
• 6″ channel side rails
• 3″ channel cross members – 16″ spacing
• Cold form continuous tongue (no notching or heating)

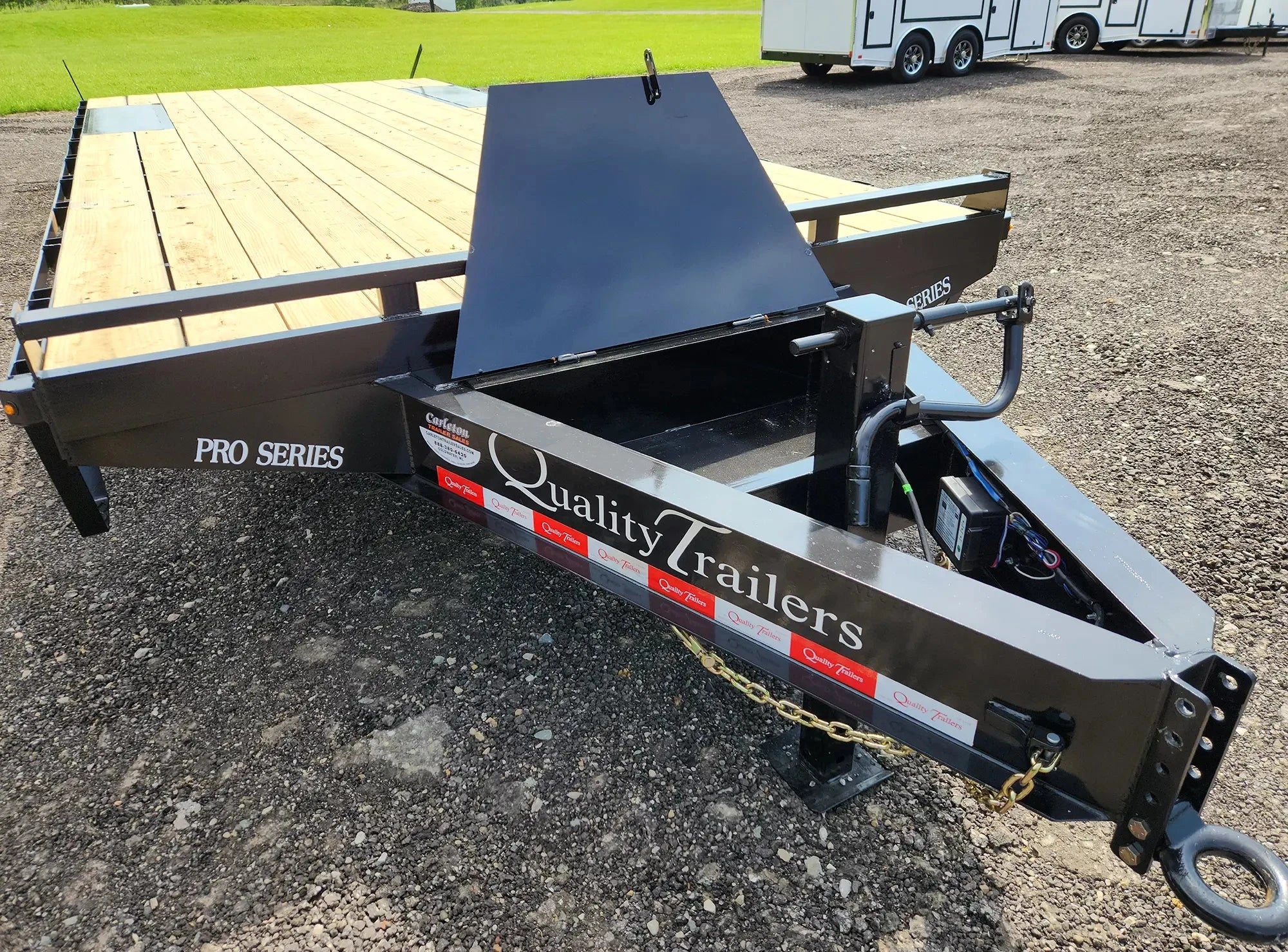

• Toolbox with lockable lid built into tongue

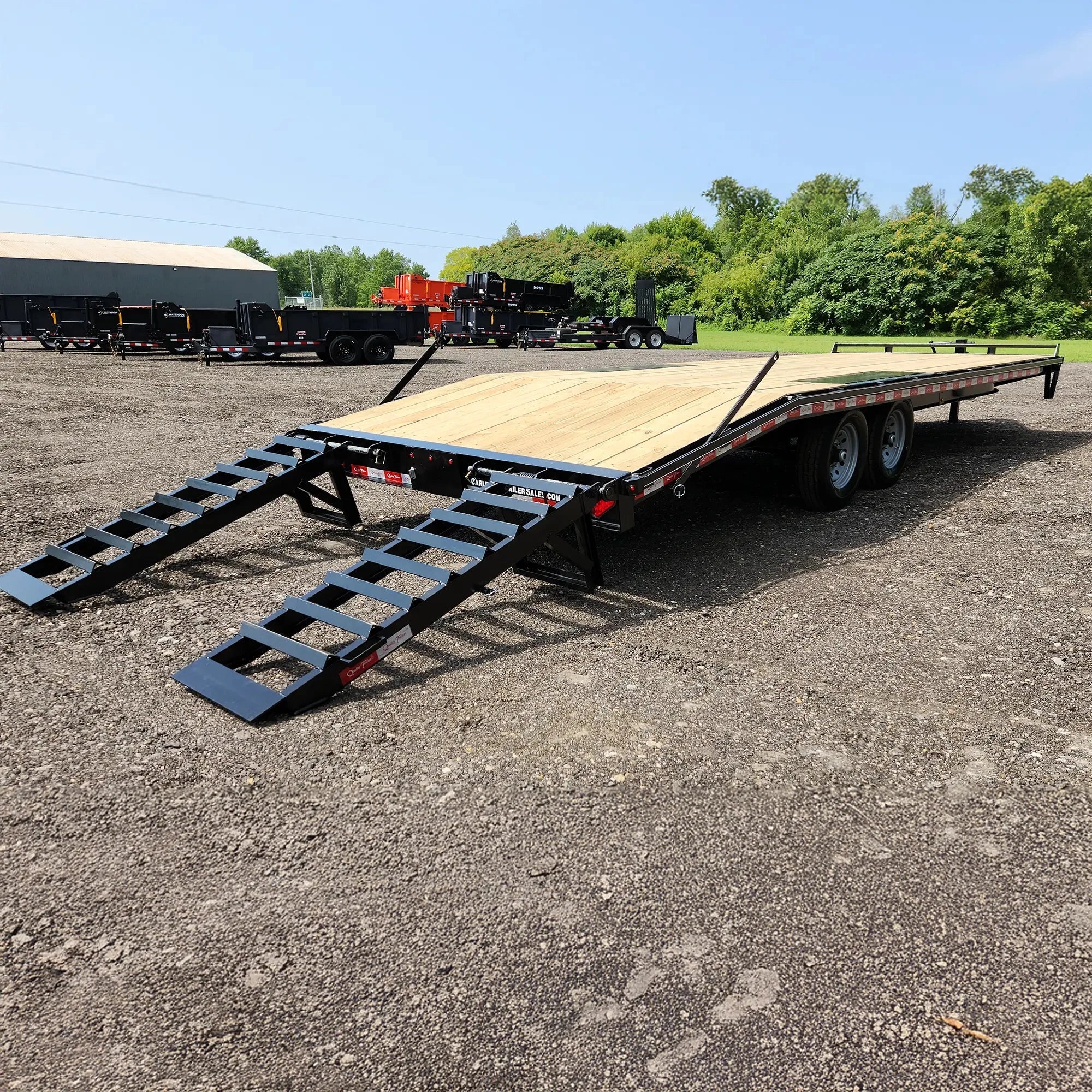

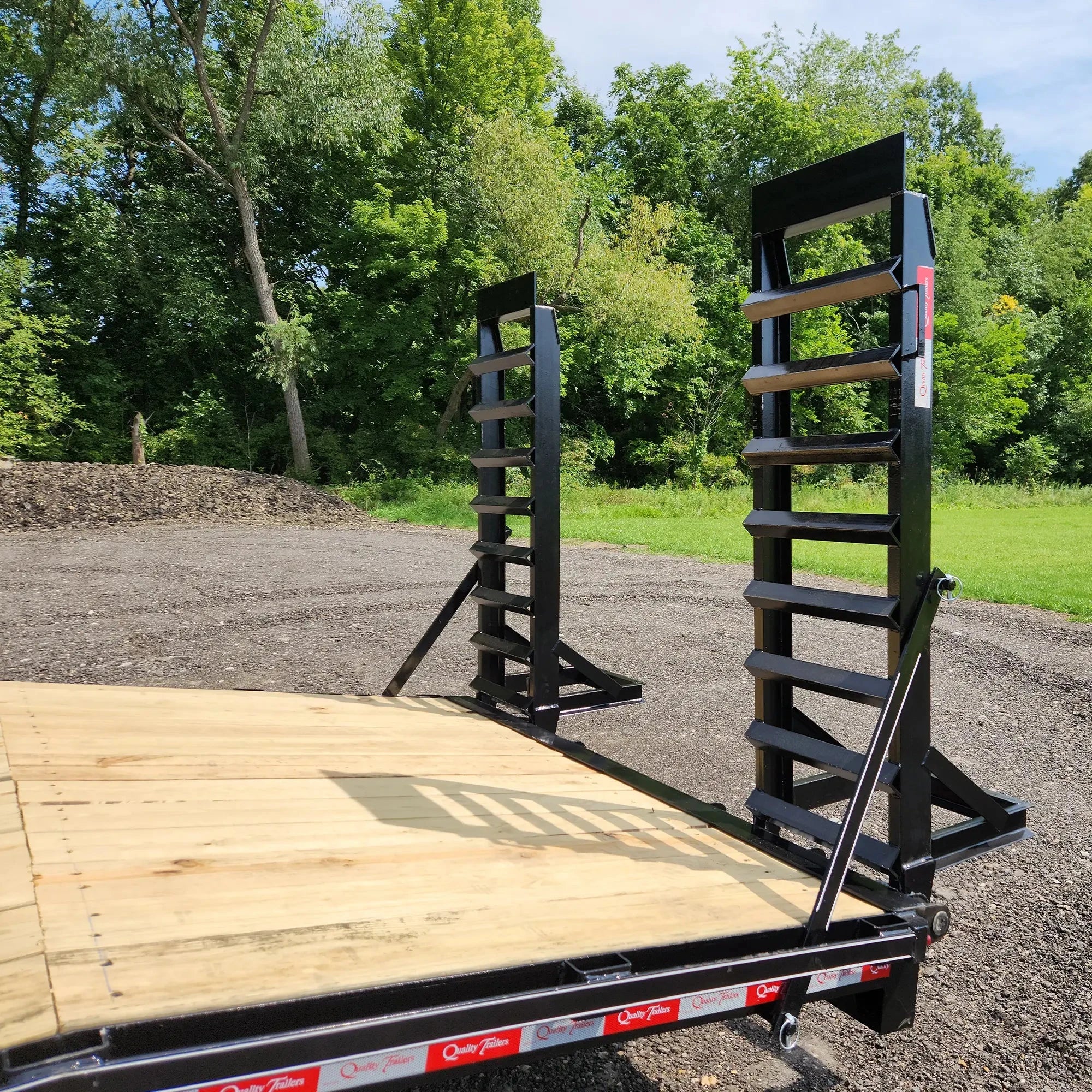

• 5 ft. swing-up ramps with support foot
• Pintle ring on heavy adjustable plate (no ball hitch available)
• 12000 lb. drop-foot jack
• Metal plate over wheels for lowest possible loaded deck height (35″)
• Stake pockets and rubrail
• Self charging break away kit, safety chains, full DOT reflective tape and all rubber mounted LED sealed beam lighting with U.S made sealed modular harness with 2 year warranty
• Primed, 2 coats of acrylic enamel, pin stripe
